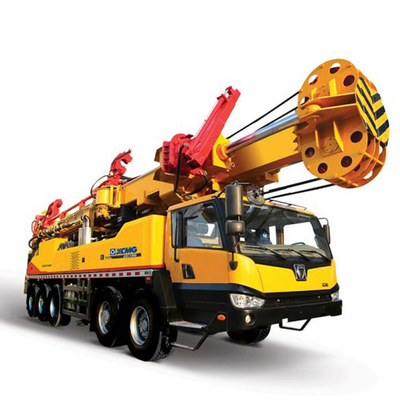

Xuzhou manufacturer deep water well drilling rig XSC10/500
1000m truck mounted drilling rig price
XSC/XSL series deep(water) well drilling rig uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency. Reasonable overall layout uses the tractor-mounted or all terrain chassis for transportation with good maneuverability. Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc., and can also be used for coal-mine gas exploitation or salvage work.
The top-mounted driving head principal shaft has a great drift diameter, which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.
Parameter | Units | XSC10/500 | |
Drilling capacity | Max. drilling depth | m | 1000(Φ89) |
Max. drilling diameter | mm | Φ500 | |
Feeding system | Max. lifting capacity | kN | 500 |
Max. feeding capacity | kN | 150 | |
Max. lifting speed | m/min | 27 | |
Max. feeding speed | m/min | 61 | |
Stroke | mm | 7600/12200 | |
Top drive | Max. torque | N·m | 14500 |
Speed | r/min | 150 | |
I.D | mm | Φ76 | |
Floating distance | mm | 70 | |
Max. tilting angle | o | / | |
Deck engine | Type | / | CUMMINS QSB5.9-C210 |
Rated power | kW | 154 | |
Main winch | Hoisting capacity | kN | / |
Tool winch | Hoisting capacity | kN | 45 |
Breakout device | Max. breakout torque | kN | 45000 |
Vise clamping range | m/min | 0~200 | |
Mud pump | Max. flow | L/min | 1200 |
Max. pressure | MPa | 11 | |
Foam pump | Max. flow | L/min | 50 |
Max. pressure | MPa | 10 | |
Mud pipe | I.D | mm | Φ76 |
Max. pressure | MPa | 15 | |
Chassis | Drive mode | / | 8x4 Automobile Chassis |
Rated power | kW | 279 | |
Highest speed | km/h | 70 | |
Max. climbing gradient | % | 50 | |
Working dimension | mm | 12340x3955x16850 | |
Transportation dimension | mm | 16000x2500x4000 | |
Weight | t | 36 |
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 15 years experience in this field already.
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
We have already exported our products to more than 100 countries and regions, including: Africa, the Middle East, South America, Central Asia, Russia, Mexico, Australia, New Zealand, Holland, British, Mongolia and so on.
Which countries do you export to?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, UAE, Jordan, Oman, Syria, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.
What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.
What spare parts can you supply?
All kinds of spare parts of X C M G, SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, S D L G, LONKING, XGMA, CUMMIN S ENGINE, ZF GEAR BOX, etc.
Send Message or Chat Now for Best price!!!
CANMAX, as a professional one-stop machinery equipment supplier, we always keep the service philosophy " Running On Faith, Keep Promise, Focus On Customer Concerns, Walk To Success With Customer ", devote ourselves to what customer needs, and provide products and service with high performance and good price.
Please let us know the main use, brand, power and other requirements of the purchased products.
We will recommend the related products to you.
↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓
