KG510 2019 granite depth mining down the hole with used rotary blast hydraul crawler core quarry drilling rig machine for sale

1.0 Sets
MOQ
KG510 2019 granite depth mining down the hole with used rotary blast hydraul crawler core quarry drilling rig machine for sale
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Applicable Industries: Construction works , Energy & Mining
Showroom Location: Australia
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Ore
Dimension(L*W*H): 6800*2800*2850mm
Weight: 6500kg
Warranty: 1 Year
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pressure vessel, Pump, PLC
Key Selling Points: Flexible Manufacturing
Max. Drill depth: 25M
Drill diameter: 105-152MM
Rotating speed: 0-3.5Km/h
Air consumption: 13-22m3/min
Feed Stroke: 3000mm
lifting force: 40KN
Alternative name: Wagon Drill, Blast Hole Drill, Bore Hole Drill
Application: Granite, Basalt, Quartz, Quarry plant etc.
Key words: drilling rig
Drilling Hardness: f=8-12
Local Service Location: None
After-sales Service Provided: Video technical support, Online support, Field installation, commissioning and training
証明: ISO9001,GC,QAC
基本情報
証明: ISO9001,GC,QAC
お支払配送条件
Packaging Details: KAISHAN brand KG510/KG510H micropile drilling rig packing details:Mine crawler drill rig in standard container, nude packs or in bulk.
Supply Ability: 100 Set/Sets per Year micropile drilling rig
製品の説明
Product Description

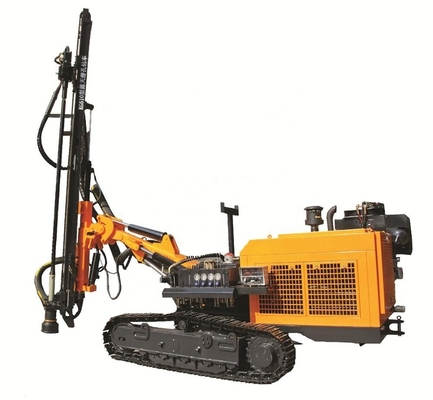

KG510/KG510H Down the hole Drill Rig for Open Use

The KG510/KG510H down the hole drill rig for open use is an improved device in compliance with national regulations in diesel-engine emissions. Equipped with Yuchai four-cylinder engine (China 3), the drill rig meets national standards for emissions and environment. The folding frame track, four-wheel drive are adopted; add track leveling cylinders and the plunger piston tramming motor improves the working pressure and increase the rotary torque and revolving speed; and the lifting oil cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.
Advantages of KG510/KG510H Machine

Specific performance is as follows:
1).Safe and Stable Travelling System
· low gravity, ground clearance is achieved great, makes drill car go through bumpy road easily.
· advanced automatic balance system, makes not only drill garage walk seadily, and reduced drill car wallop greatly,guarantee the safe driving.
· unique resistance from chain device greatly improves the reliability of the drill car.
· own vehicle-mounted diesel engine provide strong power without external air compressor to walk freely.

2).Powerful and reliable engine
· adopts 4 cylinder diesel as a driving force, traction power, climbing ability; The machine small vibration, work smoothly.
.To use the patent of diesel, intake adjusting device (patent Number : 200820087606.3) plus desert air filter level 3 filtering the combination of enhanced drill car to bad environment adaptability and prolong the service life of the diesel engine.
Actual picture of cabinet loading
Application Area
KG510/510H open-air DTH drilling rig is an efficient and energy-saving advanced drilling equipment specially developed for small and medium-sized open pit mining, quarry and infrastructure construction projects.
