Underground cfa pipe laying drilling rig excavator ram drillto hdd machine

1 Unit
MOQ
Underground cfa pipe laying drilling rig excavator ram drillto hdd machine
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Condition: New
Warranty: 6 months
Applicable Industries: Construction works
Showroom Location: None
UNIQUE SELLING POINT: long service life
After Warranty Service: Online support
Local Service Location: None
After-sales Service Provided: Engineers available to service machinery overseas
Application: Underground pipe laying
Engine: Cummins
Pullback(max): 330kN
Thrust(max): 330kN
Spindle speed: 0-125rpm
Incidence angle: 8-20°
Ground drive speed: 0-1.5km/h
Grade ability: 25°
Length of drill pipe: 3000mm
基本情報
お支払配送条件
Packaging Details: 20' container
Supply Ability: 2 Unit/Units per Month
製品の説明

Product description

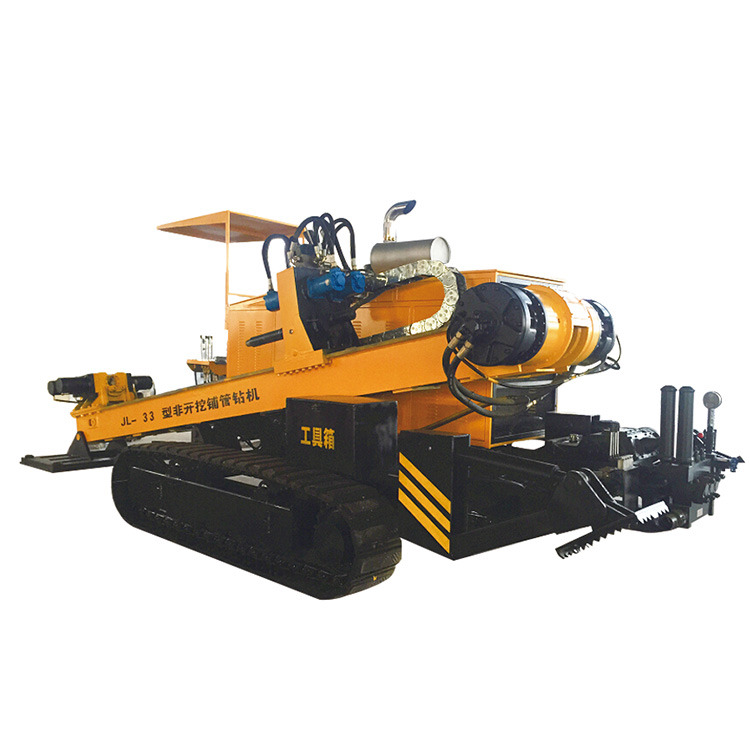

JL-33 ton Horizontal Directional Driller is a new underground piping construction machinery which is based on the advanced theory of “Trenchless Technology”. With fully hydraulic and power-drive technology, it achieves drilling, rotating, back-broaching, back-towing, and travelling. It is widely used for pipeline construction and maintenance for water supply, coal gas, electric power, telecommunication, natural gas, and petroleum in railways, roads, buildings, rivers, and other construction-limited areas, such as cultural protection areas, downtown areas, crops and vegetation conservation areas.

Parameters

Rerference photos

Overseas exhibition

If you have any interest, pls contact me. I give you Best price.
