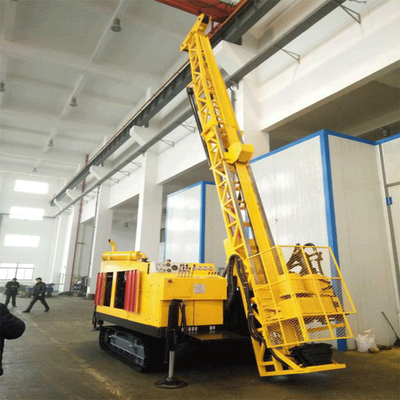

Crawler portable hydraulic core drilling rig diamond core drilling rig
|
Model |
YDX-1200L |
YDX-120OT |
|
|
Borehole Diameter/ Depth |
BQ/1400m; NQ/1200m; HQ/850m; PQ/600m |
||
|
Drill Angle |
-90~0° |
||
|
Drill Head Rotary Speed(FR/RE) |
113-165rpm; 237-345rpm; 437-636rpm; 750-1100rpm |
||
|
Max Output Torque of Drive Power Head |
5270Nm |
||
|
Drill Head Feeding Stroke |
3500mm |
||
|
Drill Head Max. Lifting Force |
108KN |
||
|
Drill Head Max. Thrust Force |
55KN |
||
|
Main Winch (Lifting Drill Rod) |
Max Lifting Ability |
75KN |
|
|
Hoisting Speed |
0.62m/s |
||
|
Assistant Winch (Wire-line Coring) |
Max Lifting Ability |
1200KN |
|
|
Hoisting Speed |
2.01m/s |
||
|
Mast Sliding Distance |
800mm |
||
|
Engine Model |
6BTA5.9-C125 |
||
|
Engine Power |
125KW/2000rpm |
||
|
Chassis Model |
Crawler type (YDX-1200)L |
Trailer-mounted (YDX-1200)T |
|
|
Overall Dimension(Drill Reduce Type) |
5300×2200×2820mm |
5300×1950×2200mm |
|
|
Drilling Rig Weight,appx. |
7800kg |
6500kg |
|
Q:Why choose us?
A:The company has used the dedicated CNC, and gotten the quality of inspection and detection means. On January 24th of 2014, Wuxi Jinfan Drilling Equipment Co., Ltd., has successfully been listed on the NEEQ.
Q:Are you are manufacturer or trading company?
A:We have both trading compang and factory.
Q:How about your customer service?
A:We have customer support team of 13 years experience.
We offers best service to all the customers over the world with tremendous technical strength and high quality of products. If you have any question,please contact us an soon as possible.
