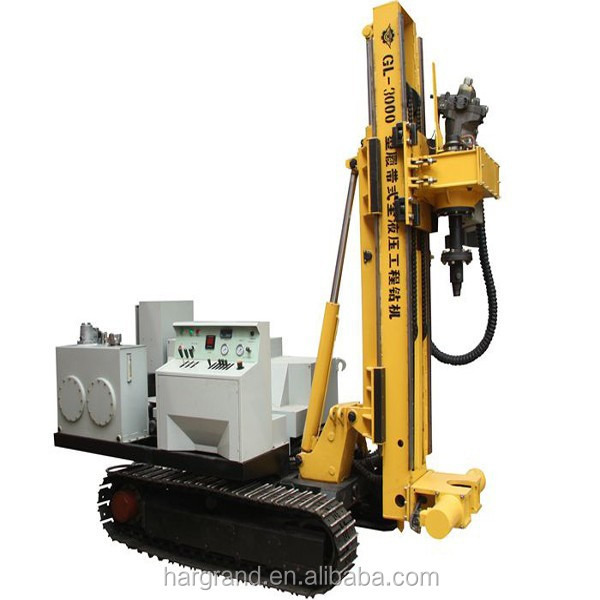

GL-3000 Full Hydraulic Ore Crawler Eingineering Drilling Rig

1 Set
MOQ
GL-3000 Full Hydraulic Ore Crawler Eingineering Drilling Rig
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Model Number: GL-3000
Usage: Ore
Voltage: 380
Power: 22kw
Dimension(L*W*H): 3390x1600x3150
Weight: 3600kg
Warranty: one year
After-sales Service Provided: Engineers available to service machinery overseas
証明: ISO
基本情報
証明: ISO
Model Number: GL-3000
お支払配送条件
Packaging Details: standard package or as your requirements
Supply Ability: 30 Set/Sets per Month
製品の説明

Specifications

GL-3000 Full Hydraulic Eingineering Crawler Drilling Rig

1.Powerful

2.High efficiency

3.Centrailized operation,easy and safety

4.ISO 9001:2008

GL-3000 Full Hydraulic Eingineering Crawler Drilling Rig

Features of GL-3000 Full Hydraulic Eingineering Crawler Drilling Rig

  • High efficiency and low power consumption since the power changes with load with direct-acting hydraulic system of load feedback tuning variables.
  • Quick and precise in hole defining and positioning with accurate vertical rig,power head rotation and speedup display device.
  • Convenient and fast in traveling with crawler walking function.
  • Easy regulation,wide speed range with high efficient fully hydraulic power head transmission and infinitely variable speeds.
  • Compact,ideal for tunnel(gallery)drilling
Technical Data of GL-3000 Full Hydraulic Crawler Drilling Rig
Model GL-3000 Full Hydraulic Eingineering Crawler Drilling Rig
Max torque 2900 N.m
With the high-speed power head 5000 N.m
Stoke of top-drive head 1800mm
Rated thrust force of top-drive head 94 KN
Rated thrust force of top-drive head 48 KN
Rod Dia φ50mm, φ 73mm, φ 89mm,
Drilling angle range (left and right)±3°;(slope forward)10°;(slope back)90°
Power Unit 45KW
System pressure 26 MPa
Cylinder extension 1000mm
Maximum gradability 20°
Weight(kg) 3600kg
Overall dimensions (L*W*H,mm)Working3390*1600*3150
Moving3110*1600*1800
