Building Material Stores Factory Small Two Wheels Type Water Well Hydraulic Rotary Drilling Rig Machine WWR100

1 Piece
MOQ
Building Material Stores Factory Small Two Wheels Type Water Well Hydraulic Rotary Drilling Rig Machine WWR100
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Applicable Industries: Building Material Shops, Food & Beverage Factory, Construction works , Energy & Mining
Showroom Location: Kenya, Nigeria
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Water Well
Voltage: 24V
Dimension(L*W*H): 4600*1550*2350mm
Weight: 4500 KG
Warranty: 1 Year
Marketing Type: Hot Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Engine
Key Selling Points: Drill anywhere you want to drill
Drilling Diameter: 90-150mm
Drilling Depth: 120m
Mobility: Move by wheels
Product name: Water well drilling rig
Drilling method: DTH hammer or mud pump, etc.
Drill rod: 60*2m
Rotary speed: 0-90rpm
Lifting force: 6T
Rotary torque: 2000N.m
Air consumption: 7-15m3/min
Walking speed: 0-3.0km/min
Engine power: Changchai 16.2KW
Working pressure: 7-14bar
基本情報
お支払配送条件
Packaging Details: Nude package/Wooden case for water well drilling rig
Supply Ability: 1 Piece/Pieces per Month
製品の説明
Products Description

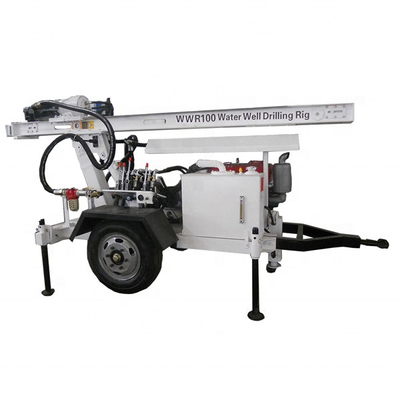

WWR100 trailer mounted water well drilling rig
Application of water well drilling rig:
WWR100 is punctured equipment for light, efficient, versatile, it is mainly applied to bore hole drilling wells, geothermal air conditioning hole and other uses.

Advantage of water well drilling rig:
1. Safe and stable traveling system, two wheels type
2. Centralized operating system, easy to operate
3. Powerful feeding and rotating system, two hydraulic rotary and lifting motor to balance the speed and force.
4. As the ball type chuck and driving rod, it can complete no-stopping rotating while the spindle relift.
5. The pressure indicator of bottom hole can observe and control the well conditions easily.
6. Close levers, convenient to operate.
7. Compact size and light in weight are easy to set up and transport o working plains and mountain area.
Recommend Products
BW160 mud pump for WWR100
Diesel screw air compressor for WWR100
Other drilling accessories for WWR100
Company Profile
If you need to add drill pipe, drill bit etc for water drilling rig, please kindly inform us your required drilling hole diameter and depth, then we can fit the suitable drilling tools for you.
