2020 Factory New Product Horizontal Directional Borehole Drill Rig For Cable Pipe

1 set
MOQ
2020 Factory New Product Horizontal Directional Borehole Drill Rig For Cable Pipe
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Condition: New
Warranty: 1 Year
Applicable Industries: Manufacturing Plant, Other
Weight (KG): 5400
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Engine, Motor, Pump
UNIQUE SELLING POINT: High operating efficiency
Product name: HL 510
Engine Power: 74 KW
Color: Yellow
Weight: 5.4 T
Size: 5760mm x1870mm x2100mm
warranty: 1 year
After-sales Service Provided: Online support
After Warranty Service: Video technical support
Local Service Location: None
基本情報
お支払配送条件
Packaging Details: 40`HQ
Supply Ability: 30 Unit/Units per Month
製品の説明
Product Overview

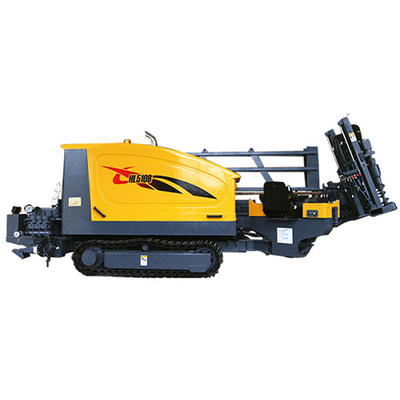

HL 510 Horizontal directional driller

Diesel engine: CUMMINS turbocharging engine provides 74 KW power, reliable performance and low oil consumption, applicative for most severe environment.

Gear box: Rack and pinion system with fast /slow speed, can provide stable and powerful force.

.Drill pipe box: Equipped drill pipe box contain 24 pieces pipe for the auto changing pipe system.

Clamp: Opening design clamp could be observed directly and make drill pipe changing easier.

Drill pipe changing system: Eletron-hydralic control pipe changing system help the operator one slight press to finish all the hard drill pipe changing work.

.Rubber track: Rubber track with 7 support wheels make zero harm to road.

. Operating table: Rotatable chair and ergonomics layout design of operating table provide a comfortable operation.
FEATURES AT A GLANCE
Easy to operate
Opening cover
Rubber tracks
Safety operation
Low noise
Anchor device
Operating table
Rubber tracks
PRODUCT SPECIFICATIONS
No.
Item
Data
1
Engine model
Cummins 4BTA3.9-C100
2
Engine power
74 KW
3
Engine speed
2200 RPM
4
Pull and Push Force
100 KN
5
Max pull and push speed
59 M/Min
6
Max torque
3000 N.M
7
Max speed of rotation
190 r/min
8
Max flow of Mud Pump
160 L/Min
9
Max pressure of Mud Pump
8 MPa
10
Diameter of rods
50mm
11
Length of rods
3048mm
12
Max incidence
18
13
Max diameter of reamer
400 mm
14
Weight
5.4 T
15
Size
5940mm x1870mm x2100mm
