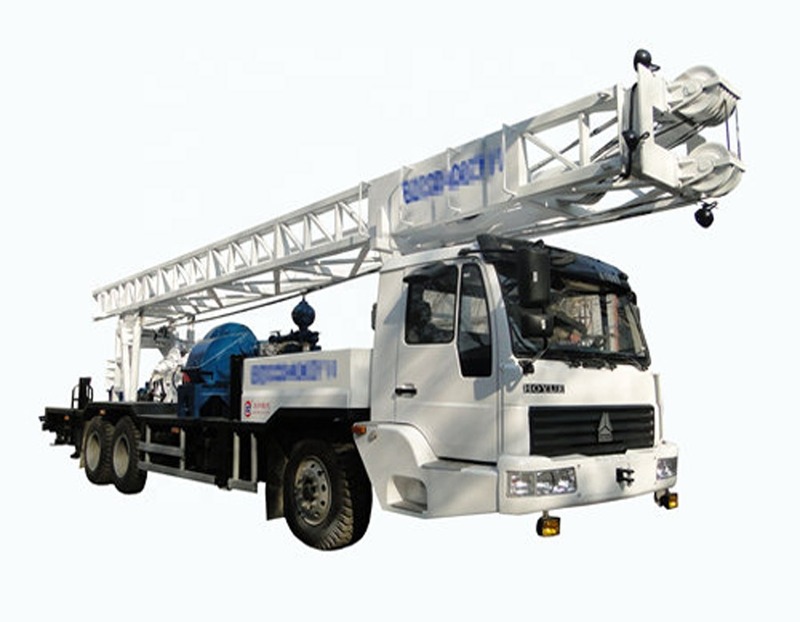

1. BZC400CHW truck mounted drilling rig is designed by our engineers; it is adopt truck mounted and is a rotary drilling rig.
2. The truck chassis is adopt the6×4 or 6X6 special chassis of brand SINOTRUK HOWO , the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump,mast are setup on the chassis. The drilling power is CUMMINS 112KW diesel engine which is on the chassis.
3.We set up a generator ( 30kw) , so that it is convenient to illuminate or work at night.
4.This rig is a rotary drilling rig with directional circulation, which is equipped with large displacement mud pump. It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.
5.The appearance of rig is pretty. It has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working. It is popular with domestic and foreign clients.
|
Technical parameter |
||
|
Drilling depth(M) |
400 |
|
|
Drilling diameter(mm) |
500 |
|
|
Speed of turntable(r/min) |
12.8;22.3;38.5;59.8;102.7;117.6;16.1(reverse) |
|
|
Torque of turntable(KN.m) |
41.4;23.8;13.8;10.6;5.1;4.5;32(reverse) |
|
|
Single rope lifting capacity of windlass(KN) |
45 |
|
|
The capacity of main windlass(KN) |
270 |
|
|
Single rope lifting capacity of hydraulic windlass(KN) |
40 |
|
|
The capacity of hydraulic windlass(KN) |
160 |
|
|
The lifting capacity of hook(KN) |
270 |
|
|
Bearing capacity of mast (KN) |
280 |
|
|
The height of mast (mm) |
12043 |
|
|
Bearing capacity (t) |
30 |
|
|
Pipe |
Kelly (mm) |
108×108×7500 |
|
Assistant pipe (mm) |
89×10×5500 |
|
A: Our company is located in No. 534 Huanghe Road,Binzhou, Shandong, China. Post code: 256611. All our clients, from home or abroad, are warmly welcome to visit us!
A: Quality is priority. BINZUAN always attach great importance to quality controlling from beginning to the end.
Our factory complies with the IS09001 standard strictly.
A: Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
A: We offer one-year quality warranty for the machine with accessories.
After sales service
After sales service:
-Technical training for new machines.
-On site service available for quality problem.
-Timely reminding for machine maintenance.
-Construction solutions will be provided for different geological conditions.
-Remind you of the wearing parts.
-7*24 hours reply to your questions.
Parts:
BINZUAN suggests our customers using the original factory’s spare parts which are designed for best performance.
Warranty:
BINZUAN provides standard one year warranty , and customers are offered to an extended service of 2 years warranty coverage.
Training Service:
– Operator training
– Market training
– Service training
